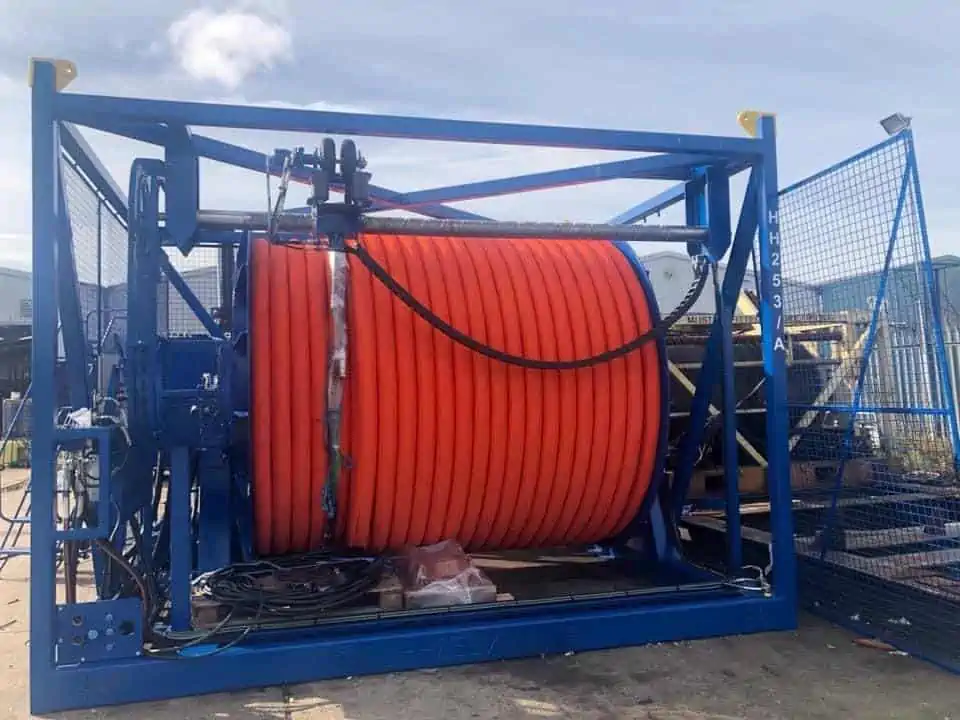

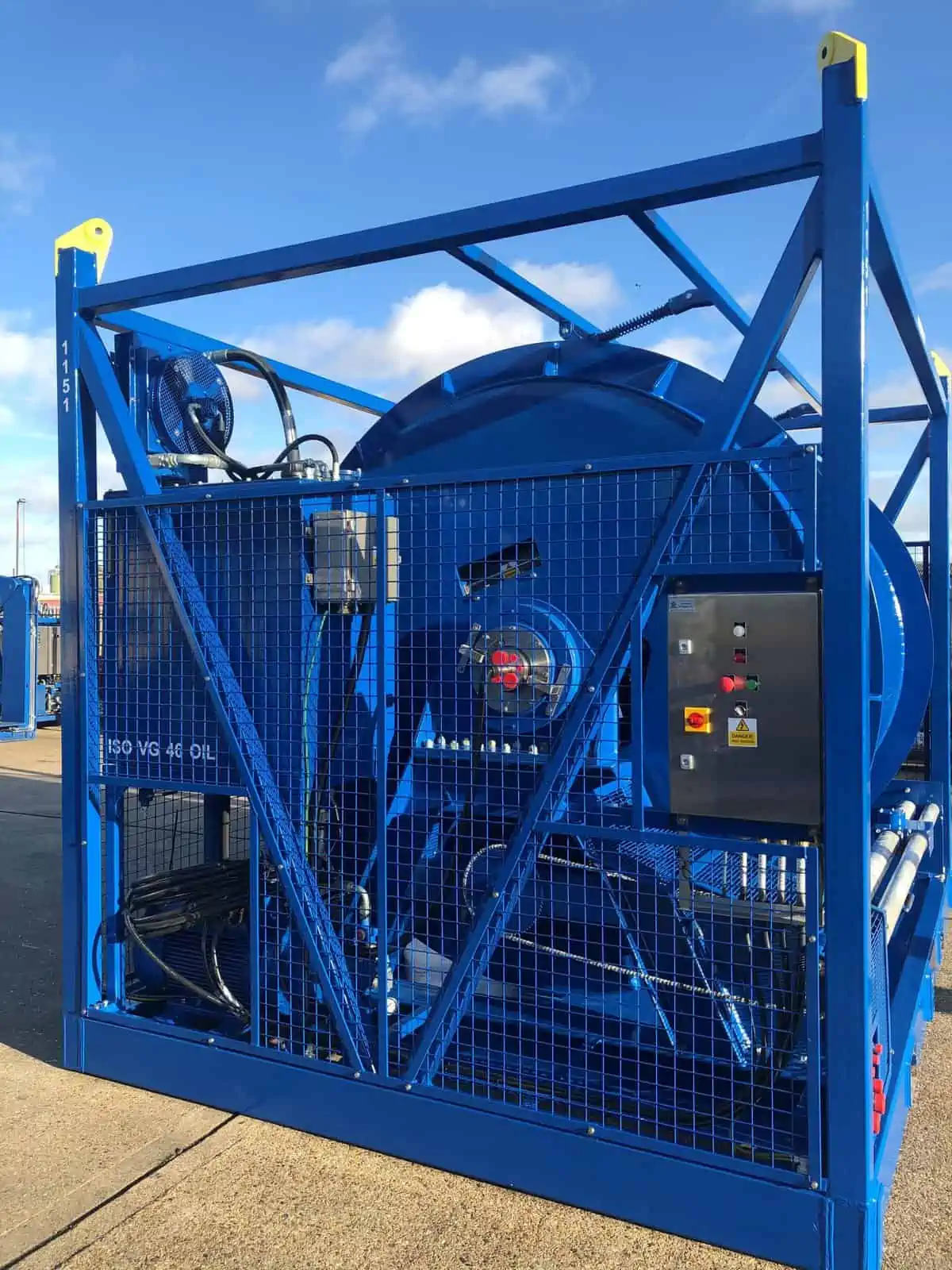

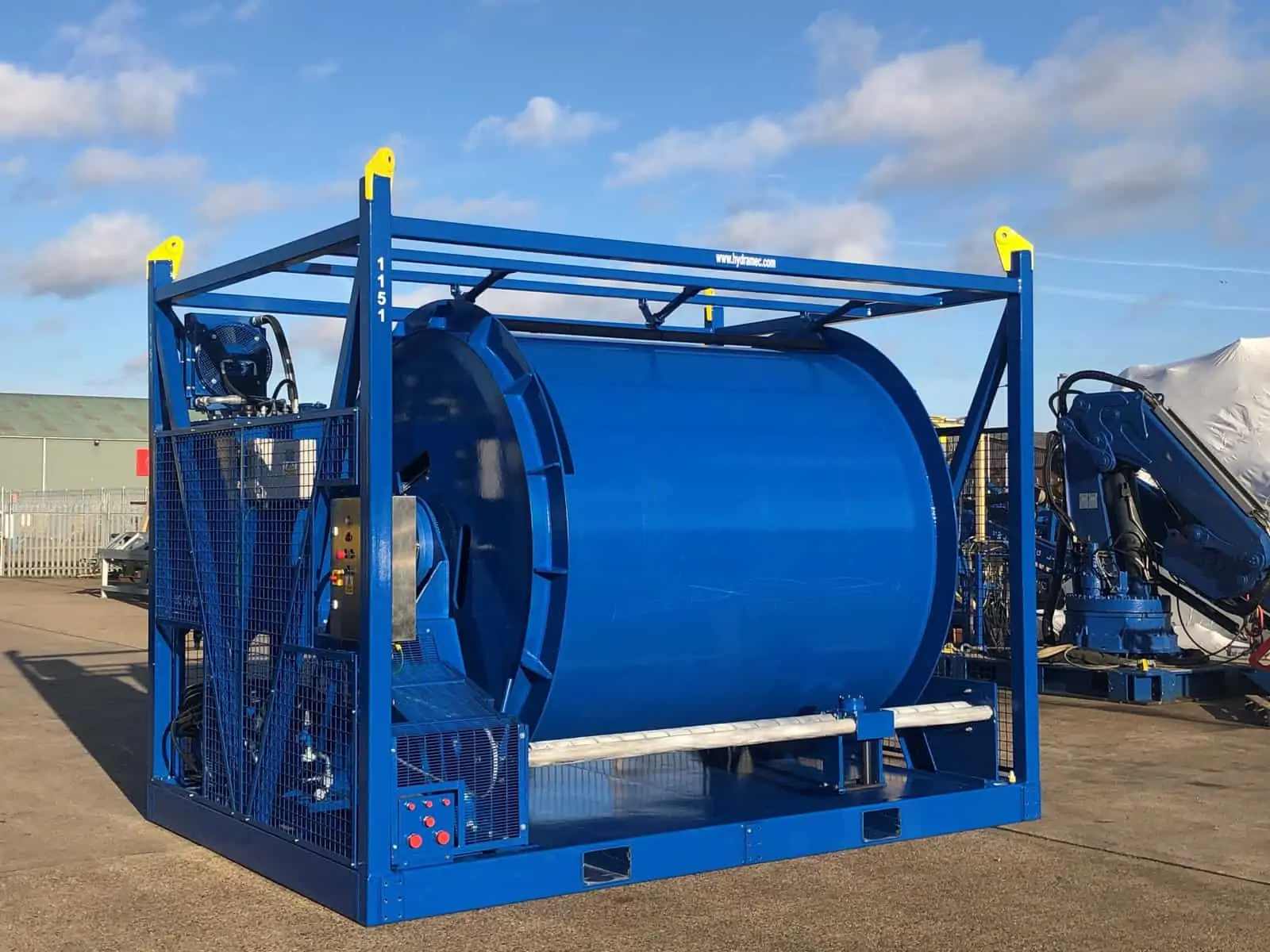

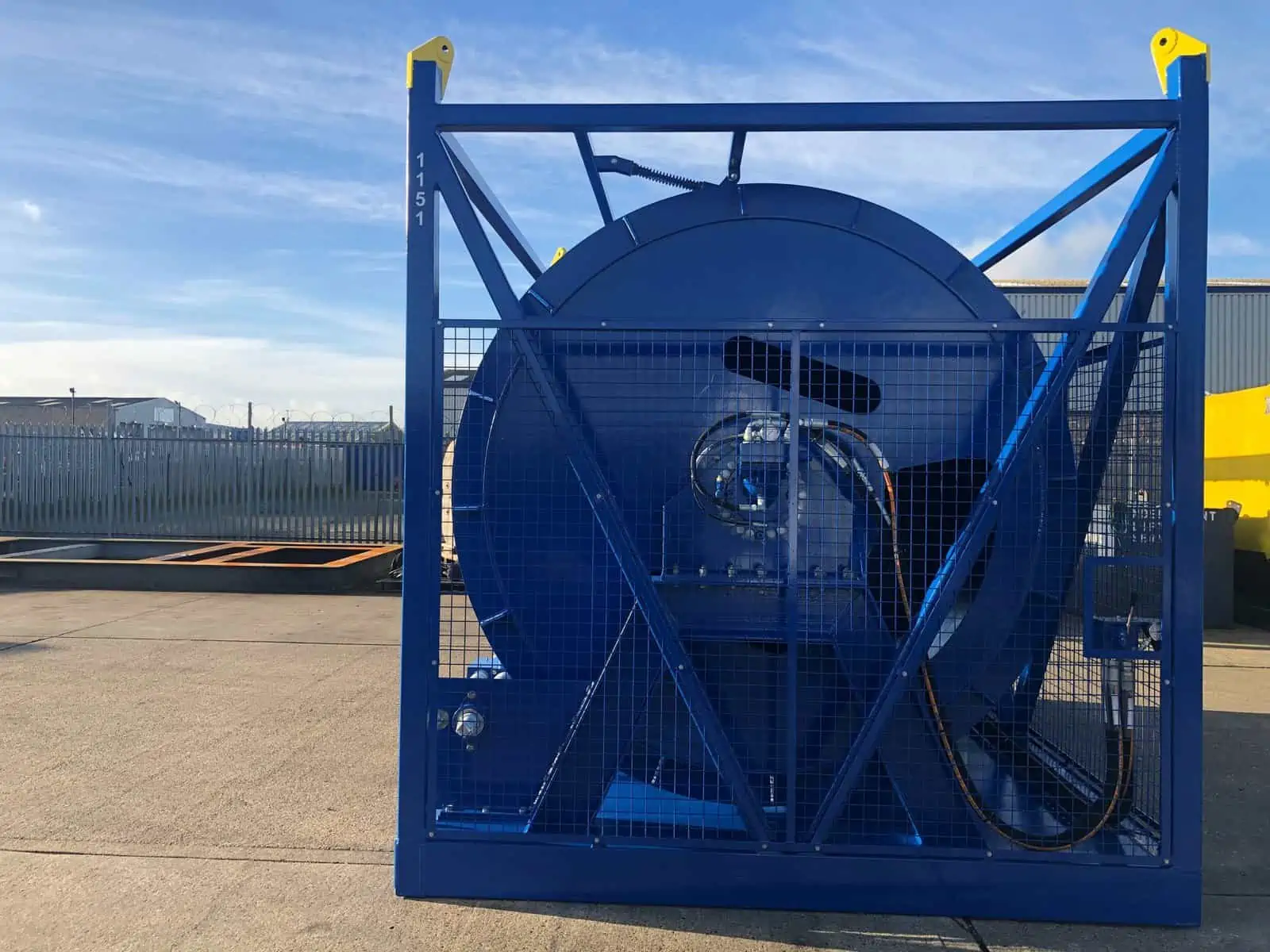

HH-225: Large Umbilical Winch Specification

Hydraulic winch including built in HPU & Level-wind:

  • 4400 x 5000 x 2800 (L x W x H)
  • Constructed from S355J2 European steel
  • Weight: 4500kg including umbilical
  • 2.2m drum diameter, capacity 300m, 130mm cable length of drum
  • Line pull: 1250kg at core
  • Rotary & static junction boxes fitted to drum
  • Line speed: 60m per minute 9RPM
  • Mechanical level wind set to suit cable diameter
  • 22kw HPU c/w 400l Tank return filter and strainer.
  • Level-wind complete with reversing screw and tongue to allow for two layers
  • Level-wind to be over slung and fitted with Roller box with Hydraulic drive tension wheels controlled and tension values pre-set to allow Umbilical to stay under tension during deployment and recovery.

Swing Frame with Rubber damper D rubber:

  • Swing Frame to attach to A-frame complete with 2200mm diameter sheave wheel 200mm wide with 125mm grove.
  • 4 tonne SWL tugger winch complete with 30m of 16mm lift wire
  • Running Lock latch with SWL of 2 ton
  • Directional control valve to operate Tugger winch mounted on main winch supplied with remote joystick
