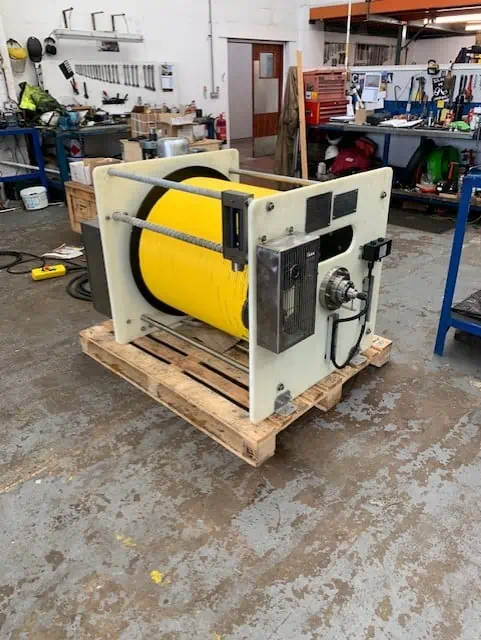

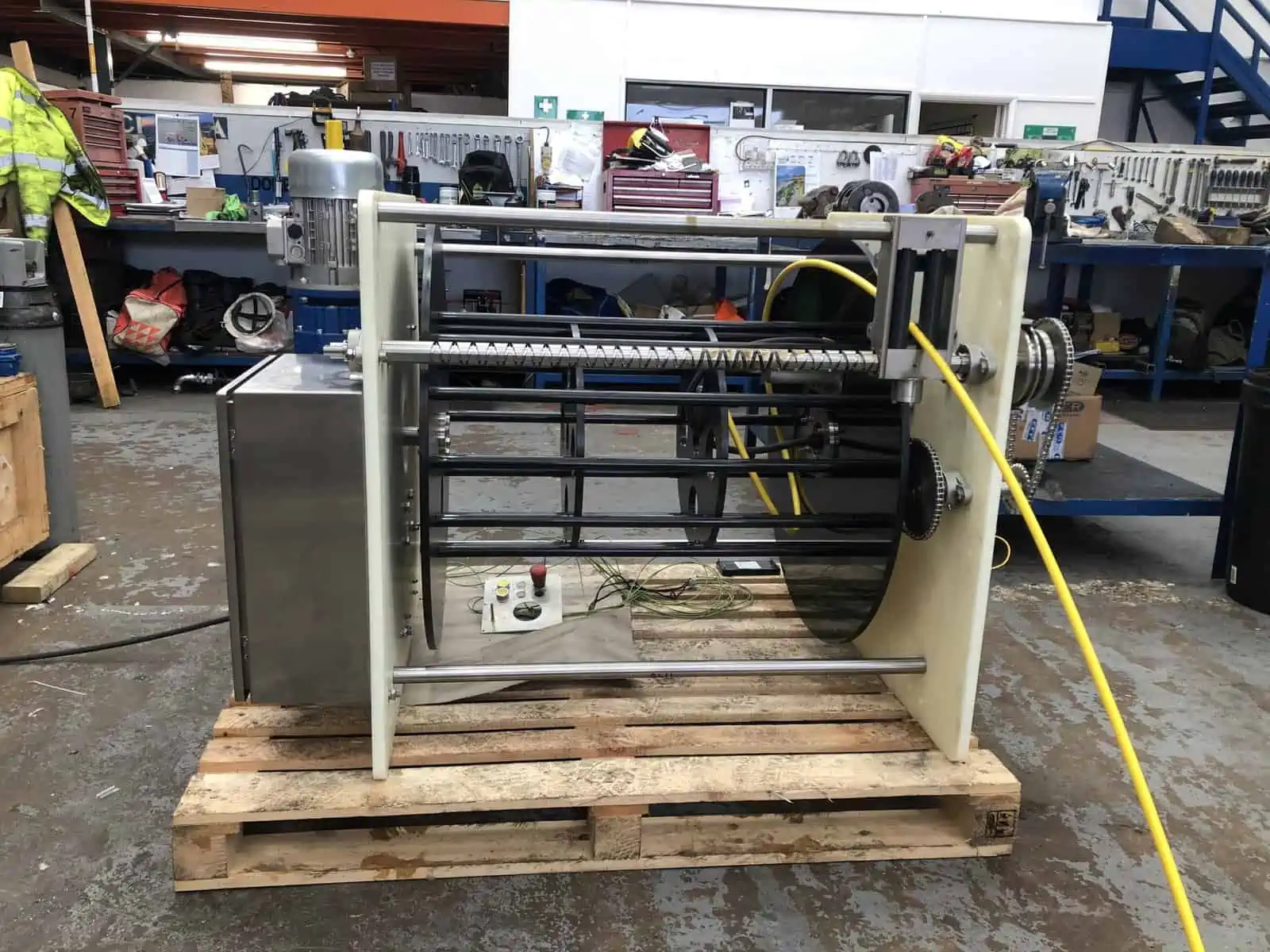

HH-252: Tether Winch Specification

  • Footprint: 1400mm x 950mm x 950mm including lifting frame (L x W x H)
  • 500mm-diameter drum with a 1100m capacity of 14mm umbilical or 440m of 16mm umbilical
  • Winch supply voltage to be 110V/230 Volt
  • Supplied with 10m Power deck lead
  • Lifting points suitable for lifting on
  • Fitted with free issue Slipring and all connections between Rotary Junction box, slipring and Static junction box
  • Main construction from GRP plastic and stainless-steel rods threaded rods holding assembly together
