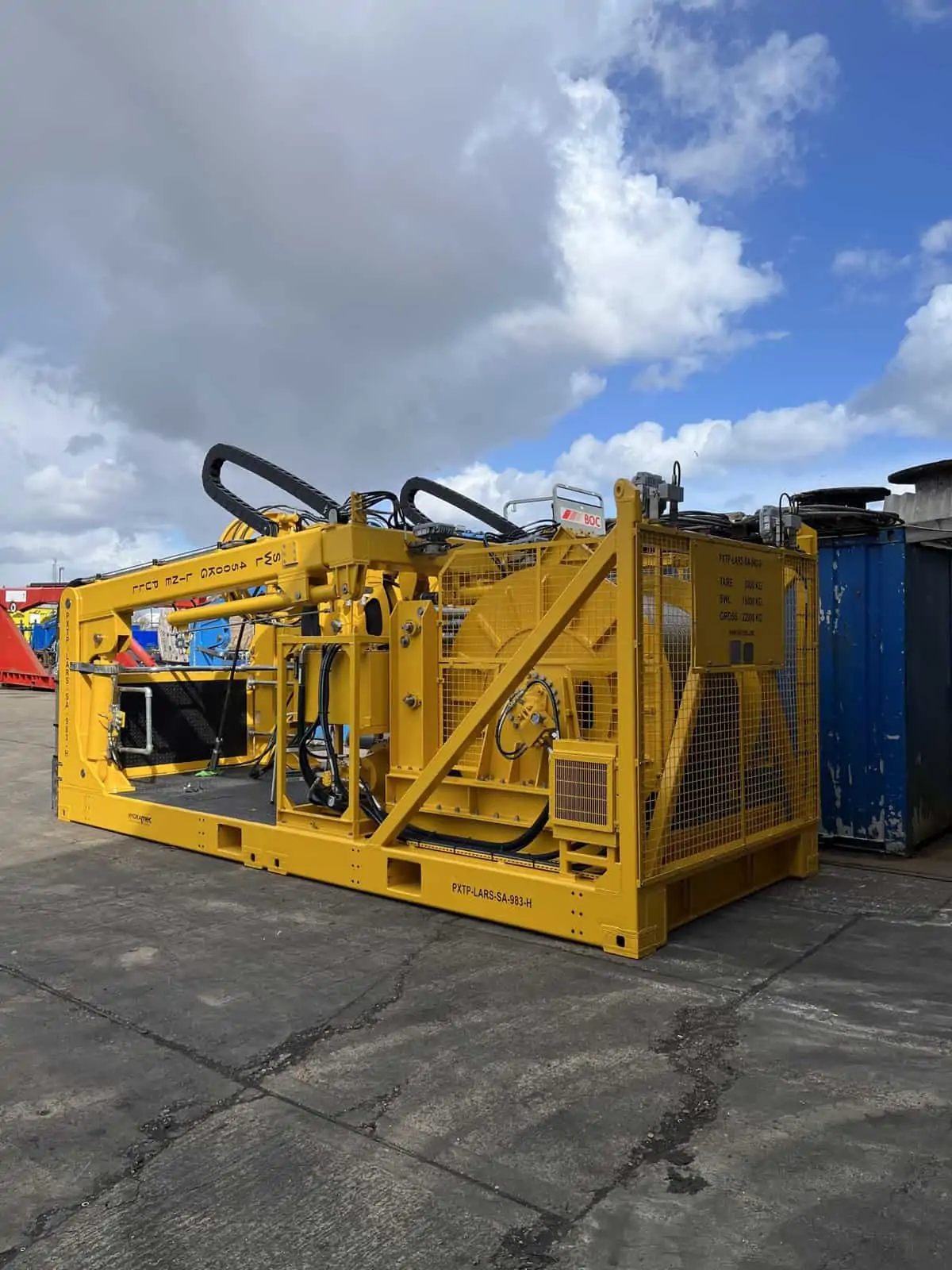

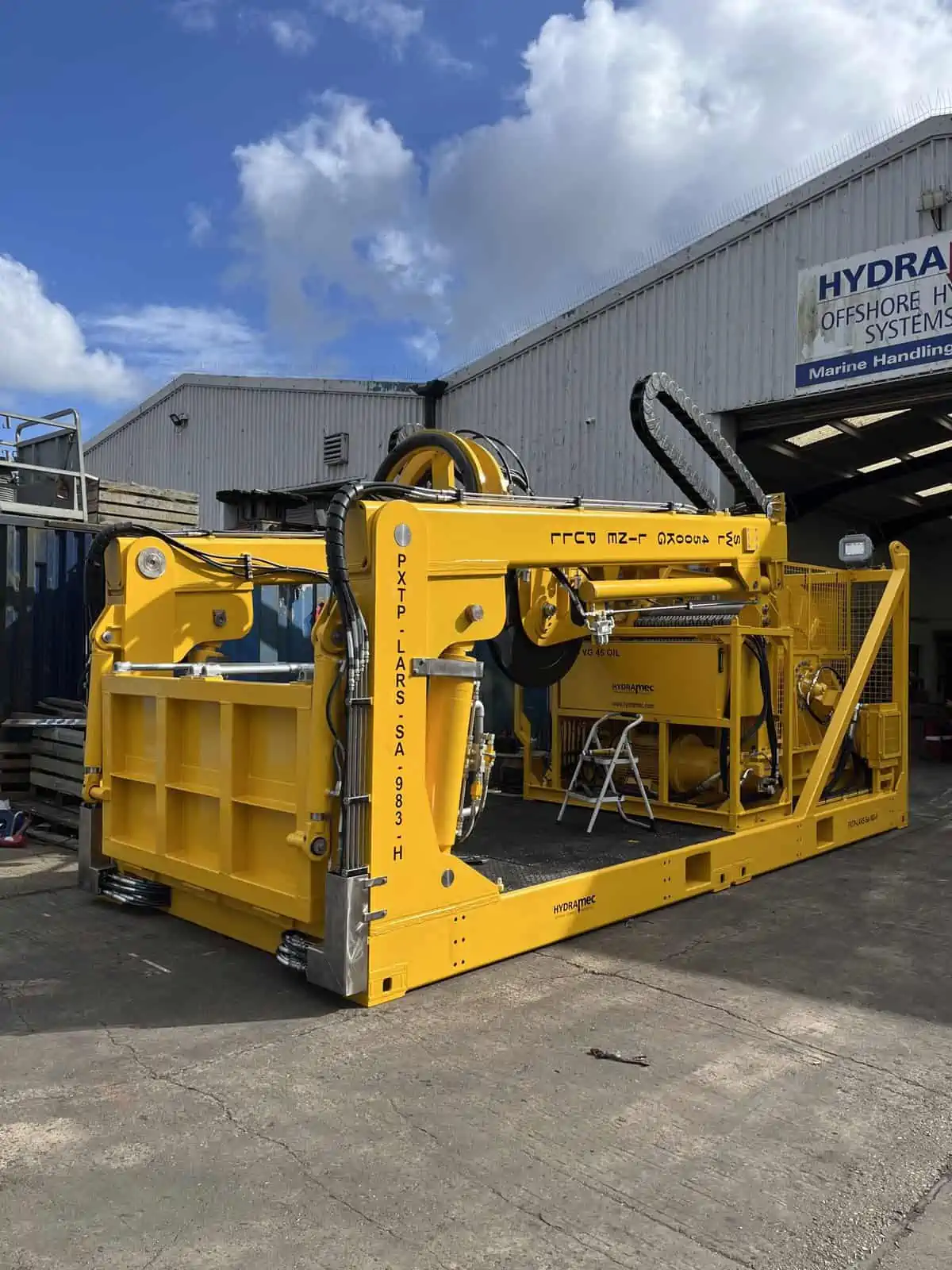

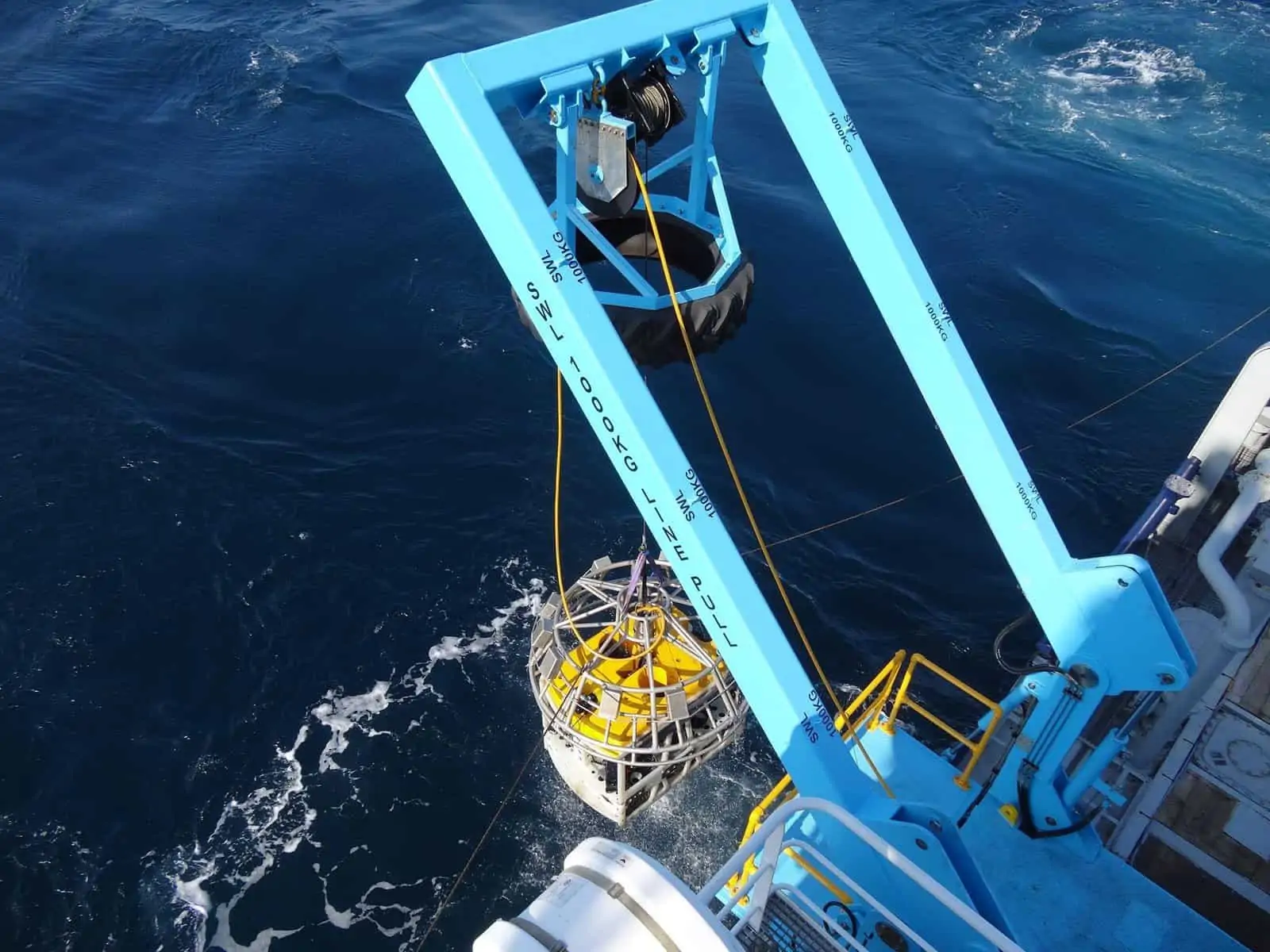

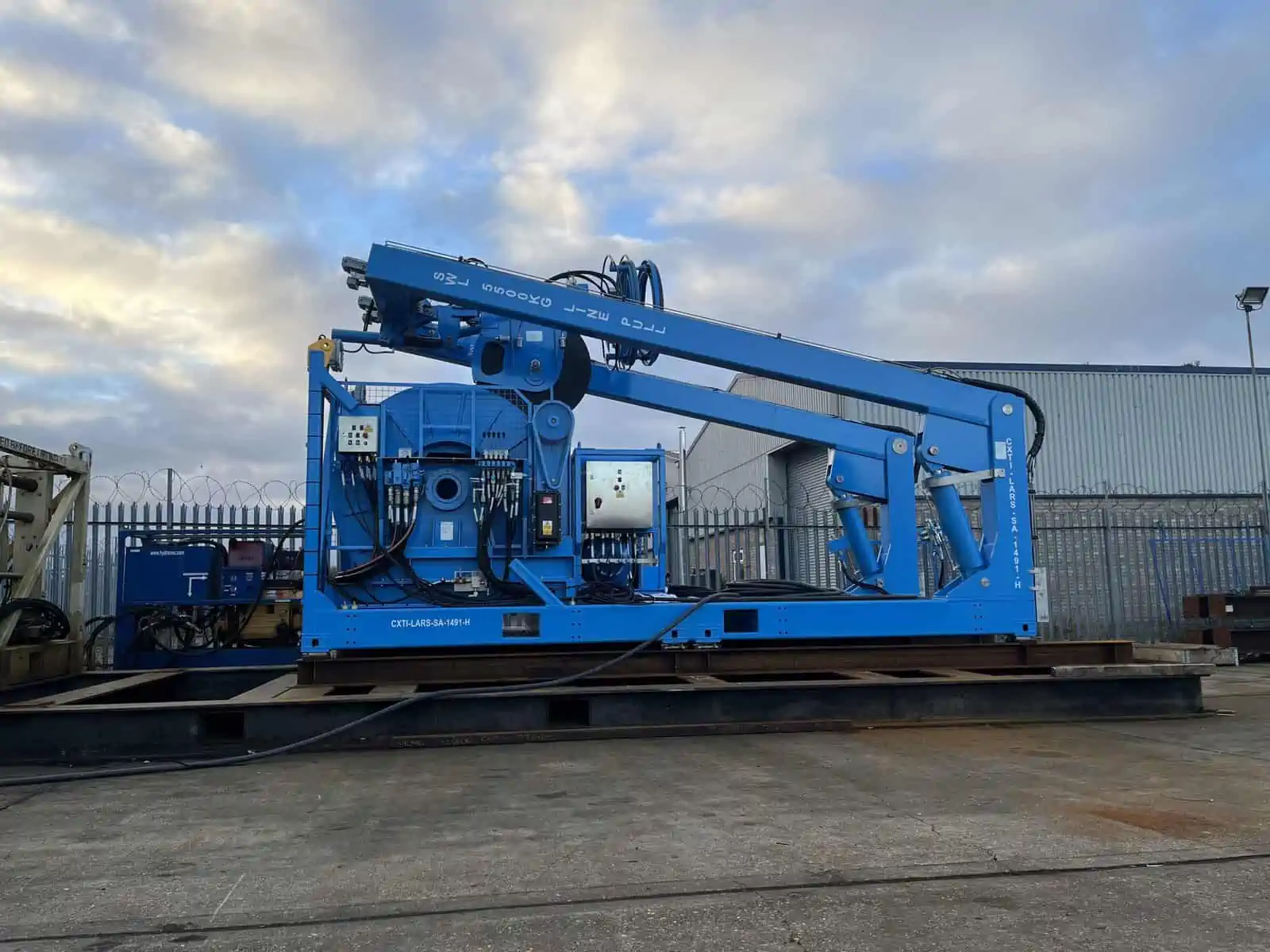

HH-262: Fixed Boom or Telescopic LARS
A-Frame:
- Footprint: 6056 x 2438 x 3330mm (LWH)
- Constructed from S355J2 RHS. Minimum operation temperature -20°C
- Maximum outreach 3.5m
- Maximum live safe working load of 5500kg in water & 3500kg in air
- A-frame operated by hydraulic cylinders having chrome on St/St rods.
- Mountains for snubber
- Removable handrails to seaward elevation
- Complete with all normal deck fastenings
- Lloyds approved to code for Lifting Appliances in a Marine Environment
Winch:
- 1000mm-diamter drum with a 2200m capacity of 26.7mm umbilical driven by hydraulic direct drive motor c/w multi disc failsafe brake
- Max line pull: 5500kg
- Max line speed: 45m per minute at core & 96m per minute with AHC
- Winch has rotary cast iron junction box fitted inside on sliding draw 3000 v rated
- Pressure gauges to all functions.
- Cast iron Static Junction boxes 3000v Rated
Snubber:
- Full functionality snubber
- X & Y articulation to correct cable off lead
- Roll ram feature
- Rotate feature Docking tube & latches for bullet
- Nylon sheave wheel to protect cable
- Latched lights on starter panel
- Auto greasers on all unreachable pins/bearings
Power Pack:
- Prime moverTwin55.0 K.W. Electric Motors440V/60 Hz IP56 380v
- Oil cooler suitable to keep ambient temperature at @ +40C hot climate
- Tank heater suitable to keep ambient oil temperature @+40C cold climates
- Mounted in separate lift frame
Design Code:
- Approved to Lloyd’s Code for lifting appliances in a marine environment
- Design temperature minimum -20°c
- Base designed, tested, and certified in accordance with B.S.12079
- Slings supplied in accordance with B.S.12079
Optional: AHC:
- Active heave of 5m in a 10 second wave period at 2000m depth
