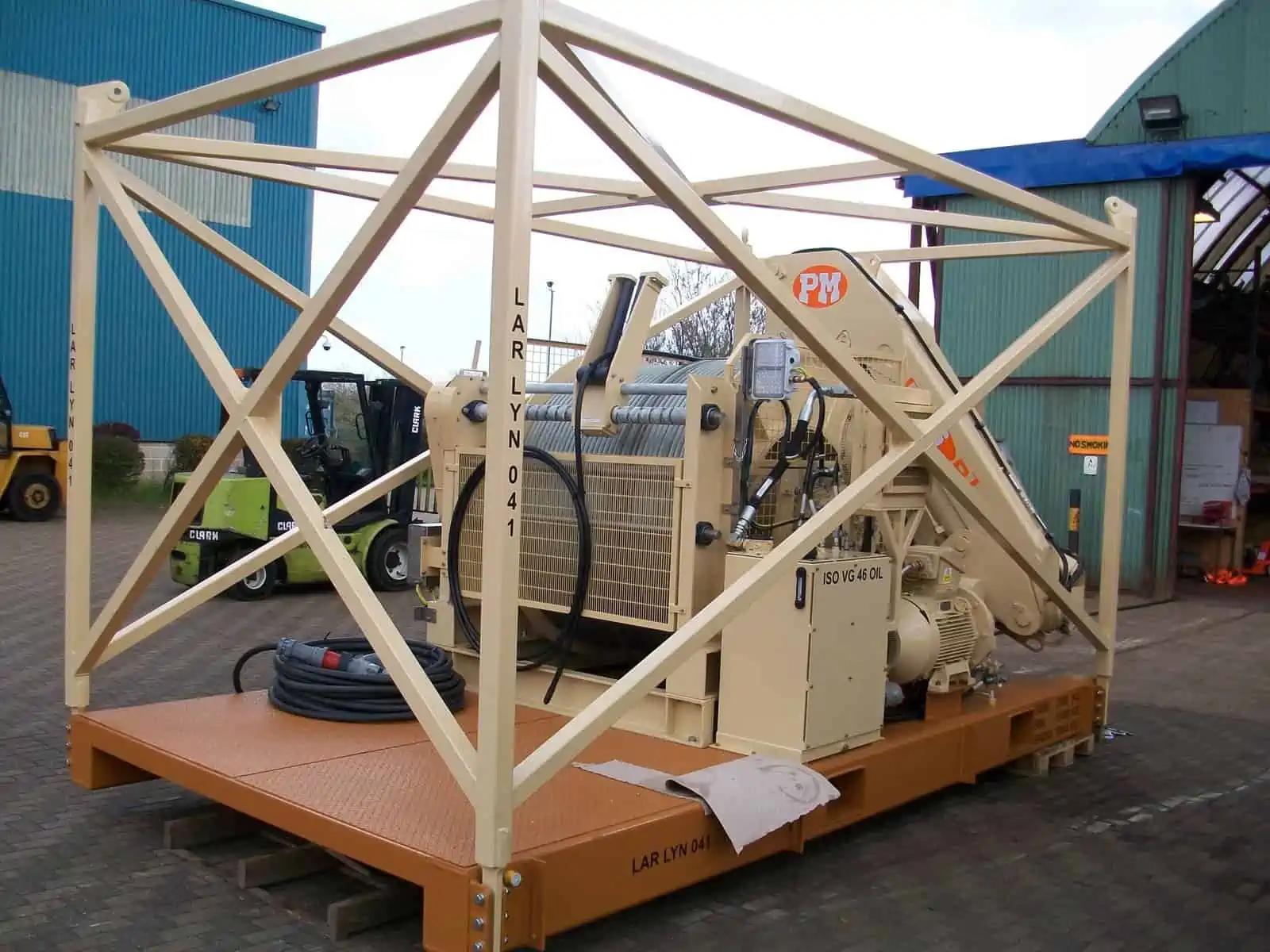

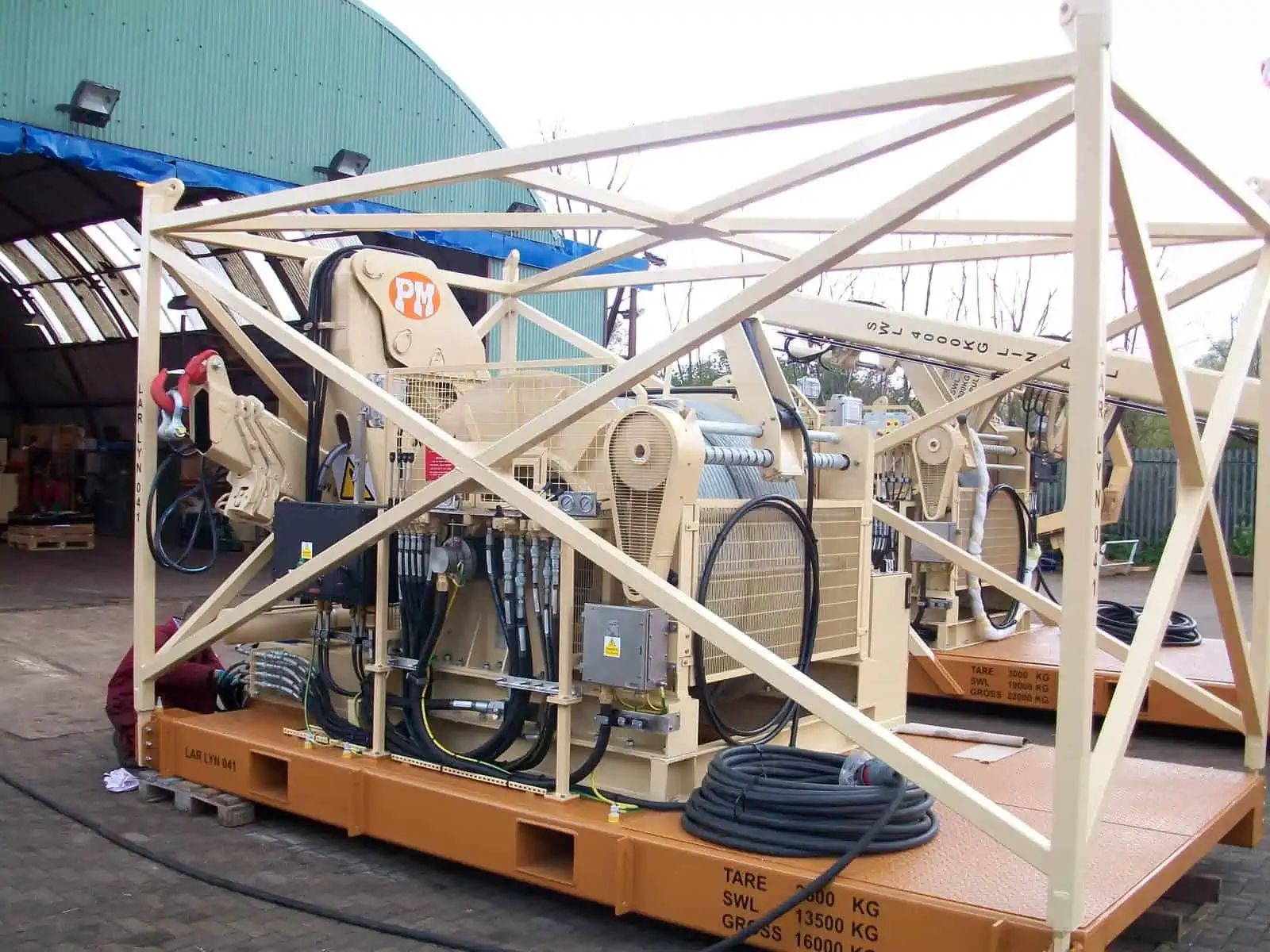

HH-50: Crane LARS for TMS
- 4800 X 2750 X 2925 mm (LxWxH)
- Classification: Safe Area or Zone 2
- Compliance: ATEX, BS EN 12079 or DNV 2.7.1
- Approved by Lloyds Register of Shipping
- Flow Rate: 70 L/min @ 300 bar
- Interfaces: Electrical – 415/440 VAC, 50/60 Hz

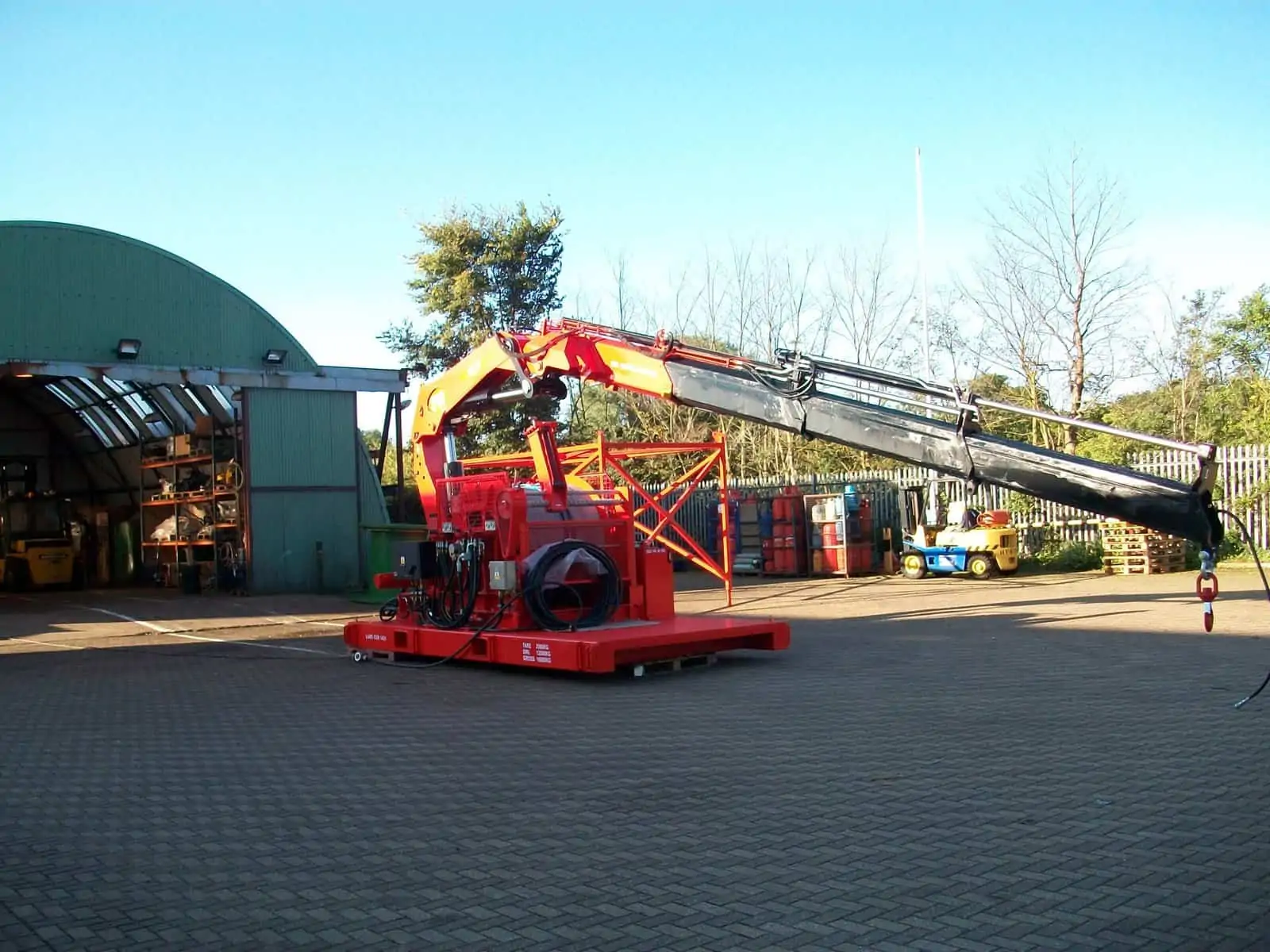

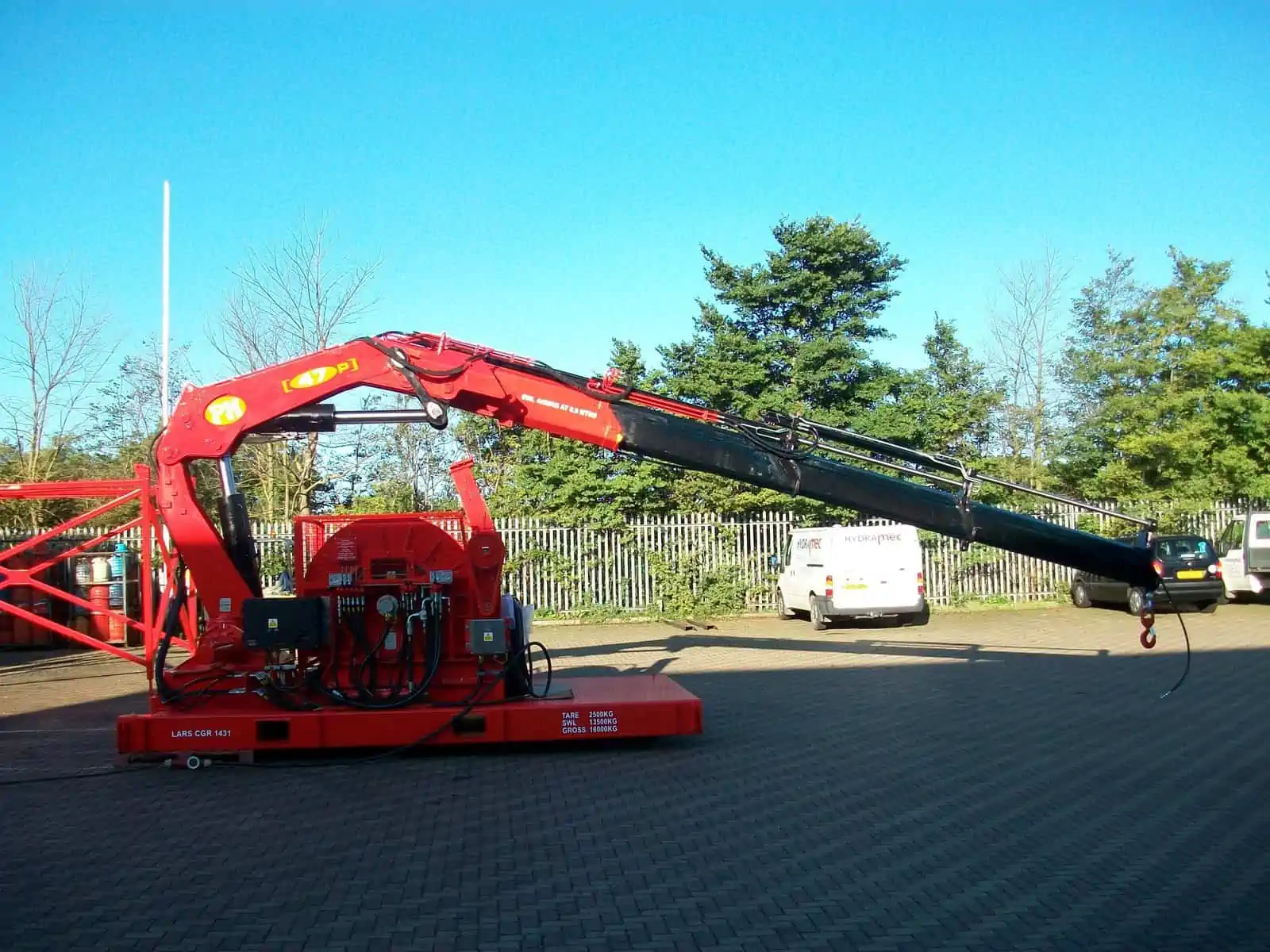

- Crane: fully marinised, 410° slew rotation
Capabilities:
- Welded: 1500m of 32mm wired umbilical at 3.2G
- Free Standing: 300m of 32mm wired umbilical at 2.5G
Reservoir Accessories:
- 1 x level gauge
- 1 x filler/breather
- 1 x return filter
- 1 x suction strainer
Safety Devices:
- Relief valve
- Pressure gauge on all function
- Lift/protection frame
- PUWER guards
