HH-64: Heavy Duty Winch Specification

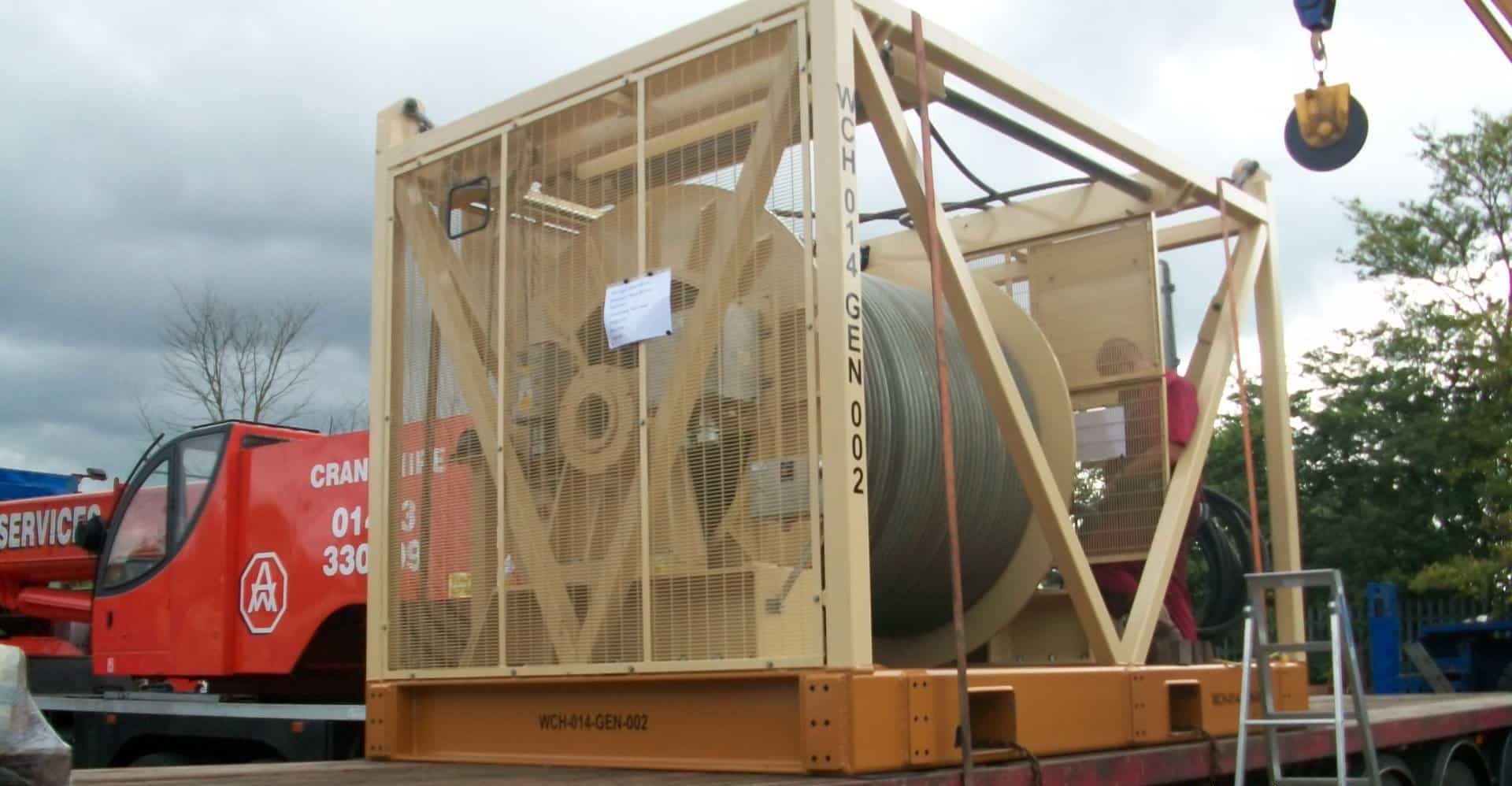

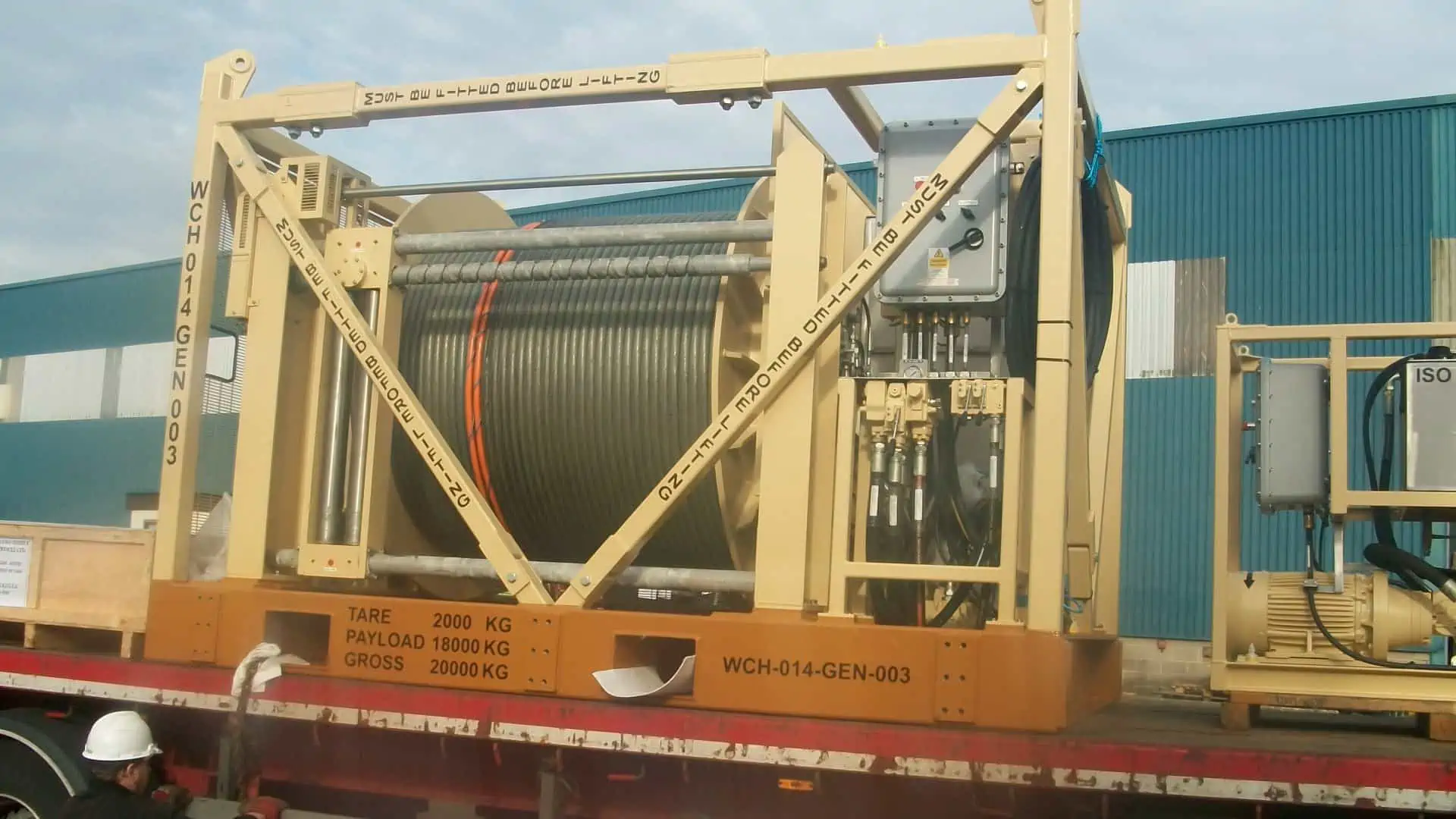

Winch:

  • Base footprint: 3400mm x 2438mm (L x W)
  • 900mm-diameter drum with a 3300m capacity of 35+/- 0.5mm umbilical
  • Max line pull: 9000kg at core
  • Max line speed: 60m per minute mid layer (45m per minute at core)
  • Winch constructed from S355J2 (50D) steel.
  • Pressure gauges to all functions
  • All rotary aspects of winch and chain drives guarded in accordance with PUWER 1998
  • Cast Iron Static Junction boxes 3000v rated

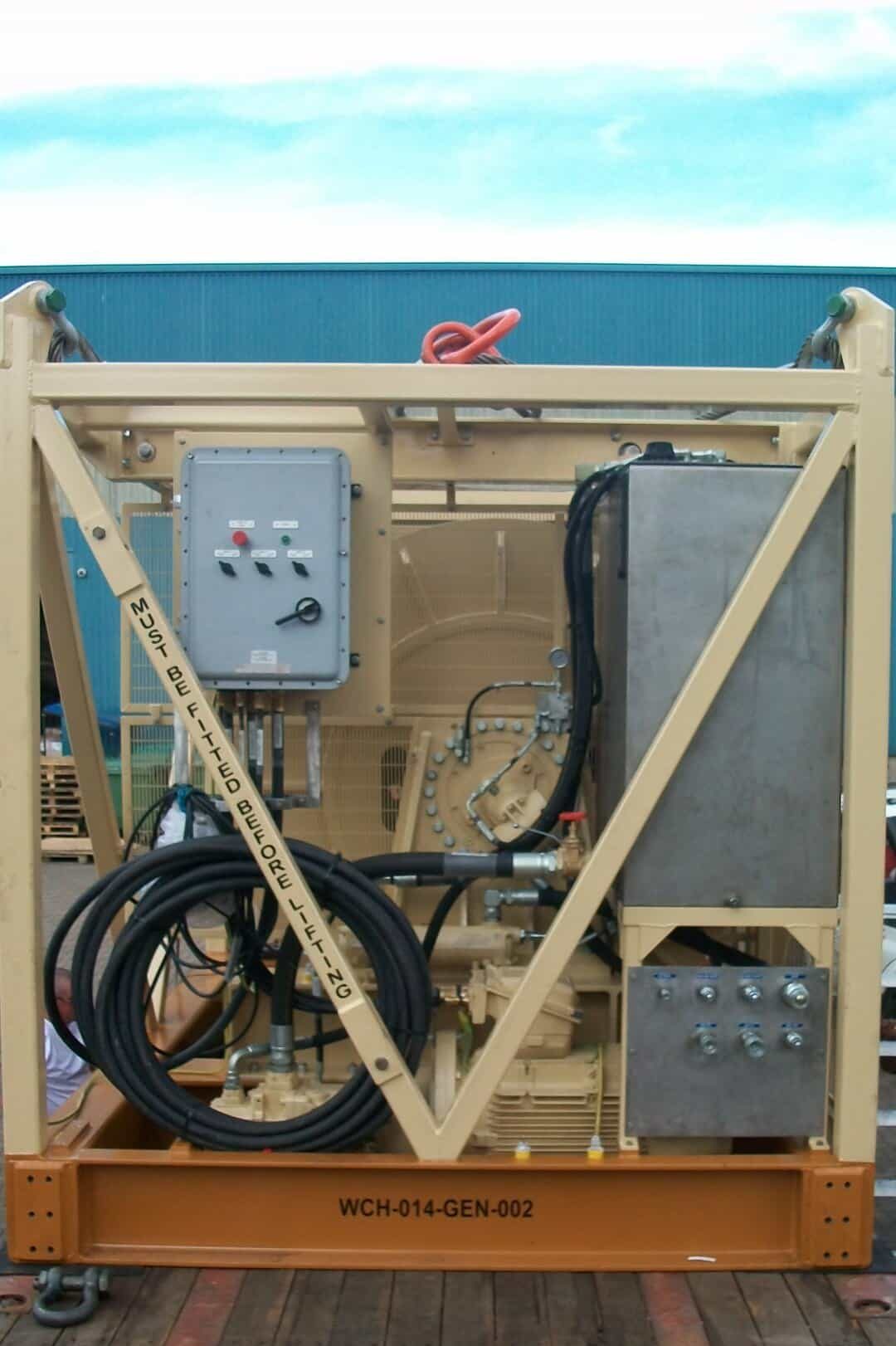

Power Pack:

  • Prime mover: twin 75kw
  • Starter: Star /Delta c/w isolator and control fuses. IP66
  • Pumps: Variable displacement pumps. Max 250bar. Servo pumps for snubber control
  • Tank: Suitable capacity tank c/w all filtration, level gauge and filler breather
  • Oil Cooler: suitable to keep ambient temperature at @ +40C hot climates
  • Tank Heater: suitable to keep ambient oil temperature

Design Code:

  • Approved to Lloyd’s Code for lifting appliances in a Marine Environment 2014
  • Design Temperature minimum -20°c
  • Base designed, tested and certified ‘in accordance with’ B.S.12079.
  • Slings supplied in accordance with B.S. 12079.
